Automatic swing doors are motorized hinged doors that open inward or outward at the touch of a sensor, push button, or remote. Widely used in offices, banks, hospitals, hotels, and residential buildings, they combine the elegance of a traditional door with the convenience of automation. Available in single or double leaf configurations with retrofit options for existing doors.
Engineered for durability, designed for performance
Works with motion sensors, push buttons, or remote control
Can be installed on existing hinged doors
Customize speed, force, and hold-open duration
Handles doors up to 100 kg per leaf with ease
Complete technical details at a glance
| Brand | Grey Automation |

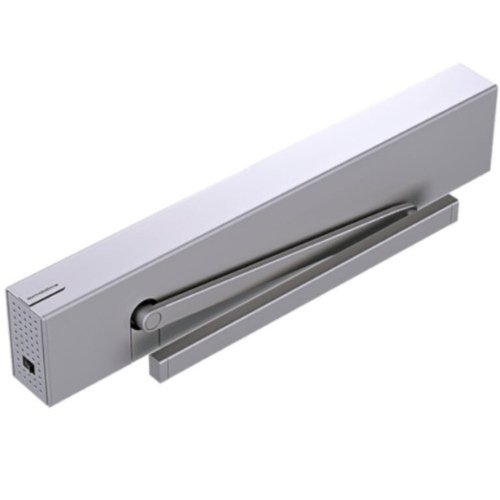

| Product Type | Automatic Swing Door Operator |
| Configuration | Single Leaf / Double Leaf |
| Door Material | Wood / Glass / Aluminium / Metal (Existing or New) |
| Max Door Weight | Up to 100 kg per leaf |
| Max Door Width | Up to 1200mm per leaf |
| Opening Angle | 85° to 110° (Adjustable) |
| Opening Time | 3-6 seconds (Adjustable) |
| Motor | 24V DC Brushless |
| Activation | IR Sensor / Push Button / Remote / Access Control |
| Power Supply | 220V AC, 50-60 Hz |
| Safety Features | Anti-Trap Sensor, Obstacle Detection, Manual Override |
| Operation Modes | Auto / One-Way / Hold-Open / Manual |
| Warranty | 2 Years on Motor, 1 Year on Components |
Versatile solutions for every industry
Corporate Offices
Hospitals
Banks
Hotels
Government Buildings
Restaurants
Residential Buildings
Retail Outlets
Everything you need to know before buying
An automatic swing door is a motorized hinged door that opens and closes automatically using a sensor, push button, or remote control. It's perfect for spaces where sliding doors aren't practical.
Yes! Our swing door operators can be retrofitted to most existing hinged doors — wood, glass, aluminium, or metal. No need to replace the entire door.
Swing doors hinge open like traditional doors, while sliding doors move horizontally on tracks. Swing doors are better for narrow openings or when retrofitting existing doors.
Multiple options — IR motion sensors, push buttons (wall-mounted or wireless), remote controls, access cards, and integration with biometric or RFID systems.
Our swing doors include anti-trap sensors, obstacle detection, and slow-motion settings. They also support 'hold-open' mode for accessibility compliance.
Yes, all our swing doors have a manual override mode. They function as regular doors during maintenance or power outages.
Get a free site visit and customized quote within 24 hours
